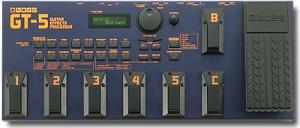

GT-5组合效果器（参数）

Patch 1:恐怖海峡在“Sultan of Swing”中的音色

COMPRESSOR/LIMITER:
type CS
sustain : 31
attack: 40
tone: +15
level: 40

PREAMP:
type Clean Twin
volume: 50
bass: 54
middle: 60
treble: 70
presence: 50
master: 70
bright: off
gain: middle

EQUALIZER:
low eq : +5
low-middle freq : 1kHz
low-middle Q: 1
low-middle EQ: -8
high-middle freq: 8kHz
high-middle Q: 1
high-middle EQ: +4
high eq: 0
level: +3dB

REVERB: (preset P1)
type Plate
rev. time : 2.8s
pre delay : 0
low cut f : 165Hz
high cut f: 6kHz
density : 8
effect level: 15

Master : all defaults
Master level: 100
Noise Supp : on
Threshold: 30
Release: 50
Foot volume 100

Pedal : foot volume

Patch 2:恐怖海峡之金钱无用

“Money for Nothing”的音色。
注意：使用单线圈拾音器，否则会损失一些高频。

WHA
type AW
mode: BPF
polarity: UP
sensitivity: 0
frequency: 40
peak: 20
rate: 0
depth: 0
level: 100

PREAMP:
type Clean Twin
volume: 100
bass: 75
middle: 100
treble: 100
presence: 50
master: 20
bright: off
gain: high

MODULATION:
type SDD
delay time : 15ms
feedback: 0
direct level: 50

REVERB: (preset P2)
type Room1
rev. time : 1.5s
pre delay : 5
low cut f : 115Hz
high cut f: 4kHz
density : 5
effect level: 20

Master :
Master level: 100
Noise Supp : off
Threshold: 30
Release: 50
Foot volume 100

Pedal : foot volume

Patch 3:Metallica在“Nothing Else Matter”中使用的音色

Comp/Lim:
Fx select CS
Sustain 50
Attack 40
Tone 0
Level 50

EQ:
Low EQ -13dB
Lo-Mid f 500Hz
Lo-Mid Q 1
Lo-Mid EQ 0dB
Hi-Mid f 4,00kHz
Hi-Mid Q 1
Hi-Mid EQ 0dB
High EQ 0dB
Level 0dB

Mod:
Fx select Ac
Top 50
Body 52
Level 70

Delay:
Mode normal Dly
Type Tap
Dlytime 37ms
Taptime 50%
Feedback 3
Hold off
Smooth on
High cut Flat
EffectLevel 71
DirectLevel 70

Chorus:
Mode Stereo
Rate 21
Depth 76
Pre Delay 4.0ms
High Cut Flat
EffectLevel 100

Reverb:
Type Hall 1
Rev Time 5,1s
Pre delay 16ms
Low cut 200Hz
High cut 8,00kHz
Density 4
EffectLevel 10

Master:
Master Level 100

Noise Suppressor: ON
Threshold 30
release 50

Footvolume Level 100

Patch 4:新金属

后期Metallica喜欢的音色，用在重型的节奏段落中。
用双拾音器比较好。

OD/DS - ON

Type :Turbo OD

Drive..92...................
Bass...+18...................
Treble..+23..................
Level....40.................


PREAMP - ON

Type :JC-120

Volume...35.................
Bass.....60.................
Middle...36.................ATT: not on MATCH/VOXY
Treble...50.................
Presence.0.................high cut MATCH/VOXY
Master...80.................
Bright...off.................
Gain.....middle.................

SPEAKER SIMULATOR - ON

Type:(P12)

EQUALIZER - ON

Low EQ.............-10db.......
Low-Middle freq....2.00.......
Low-Middle Q.......0.5.......
Low-Middle EQ......-11db.......
High-Middle freq...1.25.......
High-Middle Q......0.5.......
High-Middle EQ.....+4db.......
High EQ............+6db.......
Level..............+8db.......


REVERB - ON

Type...(P3).............

MASTER

Master Level...100..........
Noise Suppressor Effect..ON
Threshold..30......
Release....50......
Foot Volume......100........

Patch 5:人声合唱

注意：这个效果无论在立体声时还是单声道时效果都是相当好的，它的音色听起来像是在GM键盘上的唱诗班合唱音色，使用双拾音器比较好。

FEEDBACKER/SLOWGEAROFF

COMPRESSOR/LIMITERLM (P6)

-LM-
Treshold....75
Release.....10
Tone........0
Level.......17

PREAMPON

Type :JC-120

Volume....20
Bass......50
Middle....50ATT: not on MATCH/VOXY
Treble....50
Presence..0high cut MATCH/VOXY
Master....95
Bright....Off
Gain......Middle


EQUALIZERON

Low EQ.............0dB
Low-Middle freq....1.00kHz
Low-Middle Q.......1
Low-Middle EQ......- 4dB
High-Middle freq...2.50kHz
High-Middle Q......1
High-Middle EQ.....- 2dB
High EQ............+ 6dB
Level..............0dB

MODULATIONHR

-HR-
Type....2-Stereo
HR1 Mode....Medium
Pitch....0
Fine......+ 8
PreDelay....0ms
Feedback....0
Level...........50

HR2 Mode....Medium
Pitch....0
Fine......- 8
PreDelay....0ms
Feedback....0
Level...........50
Direct Level....100

DELAYON
Mode....Normal Dly
Type......Tap
Delay Time....436ms
Interval............

TAP-
Tap Time....50%
Feedback.....38
Hold............Off
Smooth........On

High Cut Filter....Flat
Effect Level.........72
Direct Level.........100

CHORUSON

Mode........Stereo
Rate..........28
Depth........100
Pre Delay....5.0ms
High Cut Filter....Flat
Effect Level.....100


REVERBON

Type.........Hall 1
Reverb Time....10.0s
Pre Delay....20ms
Low Cut Filter.....165Hz
High Cut Filter.....8.00kHz
Density................10
Effect Level.........100

MASTER

Master Level.........100
Noise Suppressor Effect..On
Threshold.......30
Release.........50
Foot Volume............100

Patch 6:失真1

漂亮的失真

Preamp:
Type Metal 5150
Volume 15
Bass 22
Middle 24
Treble 20
Presence 0
Master 52
Gain High

Sp-sim:
Type MS Stack on
Mic Set 3 cm
Mic Level 100
Direct Level 24

EQ:
Low EQ 0dB
Lo-Mid f 1,60kHz
Lo-Mid Q 0,5
Lo-Mid EQ -8dB
Hi-Mid f 100Hz
Hi-Mid Q 2
Hi-Mid EQ +11dB
High EQ +20dB
Level -2dB

Mod:
Fx Select SEQ
Low EQ +2dB
Lo-Mid f 1,60kHz
Lo-Mid Q 1
Lo-Mid EQ -5dB
Hi-Mid f 4,00kHz
Hi-Mid Q 1
Hi-Mid EQ 0dB
High EQ 0dB
Level 0dB

Master: Master level 100
Noise suppressor on
Threshold 30
Release 50
Foot volume level 100

Patch 7:失真2

另一种失真音色，可以用在the Rolling Stones的歌中。
通过吉他上的音量旋钮可以使音色再薄一些。

OD/DS
type turbo OD
drive: 40
bass: +10
treble: -5
level: 40

PREAMP:
type Clean Twin
volume: 50
bass: 30
middle: 50
treble: 50
presence: 50
master: 80
bright: off
gain: middle

REVERB: (preset P1)
type Plate
rev. time : 2.8s
pre delay : 0
low cut f : 165Hz
high cut f: 6kHz
density : 8
effect level: 15

Master :
Master level: 100
Noise Supp : on
Threshold: 30
Release: 50
Foot volume 100

Pedal : foot volume

Patch 8:Van Halen的干琴音色

PREAMP ON

Type :* Metal 5150

Volume....................40
Bass......................100
Middle....................0
Treble....................100
Presence..................6
Master....................50
Bright....................off
Gain......................high

SPEAKER SIMULATOR ON

Type: MSSTKon
Mic Setting...............Center
Mic Level.................100
Direct Level..............0

EQUALIZER ON

Low EQ........+12db
Low-Middle freq...........640hz
Low-Middle Q..............1
Low-Middle EQ.............0db
High-Middle freq..........8.00khz
High-Middle Q.............1
High-Middle EQ............0db
High EQ...................+3db
Level.....................0db

MODULATION HR

HR1
Type.........2-stereo
Mode.........Medium
Pitch...........0
Fine............+6
PreDelay........0
Feedback........0
Level...........30
Direct Level....100

HR2
Type.........2-stereo
Mode.........Medium
Pitch...........0
Fine............-6
PreDelay........0
Feedback........0
Level...........30
Direct Level....100

REVERB ON (P4)


MASTER

Master Level.............100
Noise Suppressor Effect..On
Threshold........60
Release..........50
Foot Volume..............100

Patch 9:Van Halen的“湿”琴音色

PREAMP ON

Type :Metal 5150

Volume....................40
Bass......................100
Middle....................0
Treble....................100
Presence..................6
Master....................50
Bright....................off
Gain......................high

SPEAKER SIMULATOR ON

Type: MSSTKon
Mic Setting...............Center
Mic Level.................100
Direct Level..............0

EQUALIZER ON

Low EQ........+12db
Low-Middle freq...........640hz
Low-Middle Q..............1
Low-Middle EQ.............0db
High-Middle freq..........8.00khz
High-Middle Q.............1
High-Middle EQ............0db
High EQ...................+3db
Level.....................0db

MODULATION HR

HR1
Type.........2-stereo
Mode.........Medium
Pitch...........0
Fine............+6
PreDelay........0
Feedback........0
Level...........30
Direct Level....100

HR2
Type.........2-stereo
Mode.........Medium
Pitch...........0
Fine............-6
PreDelay........0
Feedback........0
Level...........30
Direct Level....100

DELAY ON
Mode...................Normal
Type...................Single
Delay Time.............400ms


-SINGLE-
Feedback.......20
Hold...........Off
Smooth.........On

High Cut Filter .......Flat
Effect Level...........20
Direct Level...........100

CHORUS ON (P2)

REVERB ON (P4)


MASTER

Master Level.............100
Noise Suppressor Effect..On
Threshold........60
Release..........50
Foot Volume..............100

Patch 10:箱琴模拟音色

请使用单拾音器，不要用音箱模拟器。
MODULATION:
type AC
top 80
body 60
level 85

REVERB: (preset P1)
type Plate
rev. time : 2.8s
pre delay : 0
low cut f : 165Hz
high cut f: 6kHz
density : 8
effect level: 15

Master : all defaults
Pedal : foot volume
Chain: AC-FV-NS-RV


关于箱琴模拟的一些建议：
1.不要再使用其它的模块，或者reverb。除了踏板音量，其它都会令音色扭曲。
2.只用单线圈拾音器，不要用humbucker，这样高频会好一些。
3.输出电平不要太高，否则会带来噪音。
